Marine/RV Battery Combiner Picture Gallery

The following photos are from the installation in M/V Mackinaw.

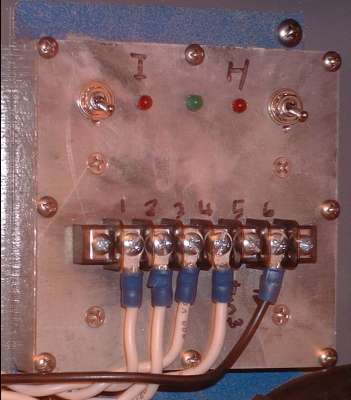

Close-up of combiner, note optional status LED's and override switches along top:

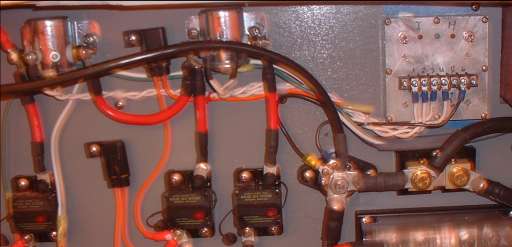

Wide angle view of combiner, solenoids and circuit protection:

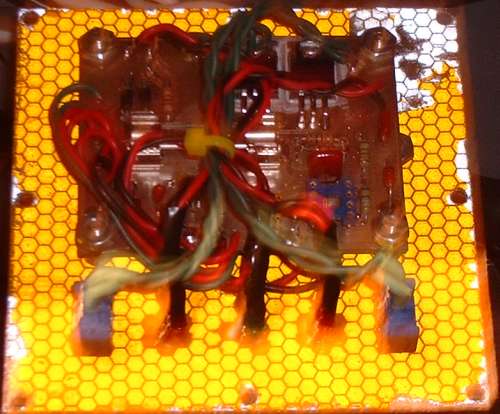

Inside of combiner, everything is mounted on the top cover:
